The SX pump series is Alfa Lavals premium ECP type sanitary positive displacement pump. It is uniquely designed for use in sensitive product and ultra-clean applications. With optimized pump head geometry and multi-lobe rotors, the SX series pumps ensure low-shear operation with minimum pulsation. This makes them the best choice for maintaining the integrity of delicate products.

Anderson Dahlen is an Authorized Distributor for Alfa Laval Pumps

Anderson Dahlen is an authorized distributor of Alfa Laval pumps, valves, and heat exchangers. We have extensive experience in pumping system design, pump installation, and pump repairs. We work in a wide range of industries, specializing in food, beverage, pharmaceutical, chemical, and industrial. When you need an Alfa Laval flow pump, contact Anderson Dahlen.

Key Sanitary Features Uniquely delivered by the SX Pump Include

  • Font-loading mechanical seals, and low- profile rotor nut for the highest level of hygienic sealing and enhancing cleanability.
  • Options available for mechanical and/or electropolishing to achieve higher surface finishes up to 0.5 Ra as well as 3.1 material traceability

Get pricing for your stock products today!

Anderson Dahlen is an authorized distributor for a variety of independent manufacturing companies world-wide, we have the capacity to provide the necessary components for most manufacturing systems.

Request Quote

Key Reliability and Long-Life Features Include:

  • Designed for the most demanding use on wide-ranging applications within the Pharmaceutical, Biotechnology, Fine Chemical, and Specialty Food industries
  • Ideally suited to applications where the highest level of cleanability and corrosion resistance is an absolute requirement
  • Conforms to USA 3-A Sanitary Standard and all media contacting components are FDA compliant
  • Operates with high efficiency, low shear pumping action for assured gentle handling of delicate and sensitive media
  • Classified for use in potentially explosive atmospheres under the ATEX Directive 94/9/EC Group II, Categories 2 & 3, with temperature classification T1 to T4
  • Is compact in size, capable of flow rates up to 506 GPM and pressures up to 215 PSI
  • Shaft Seal Options
    • Single or single flush/quench R00 type mechanical seals
    • Double R00 type mechanical seal for flush
    • All sealing options are fully front loading and fully interchangeable without the need for additional housings or pump component changes
    • Seal is dimensionally set on the assembly which further enhances fast and efficient on-site seal interchangeability

Key Sanitary Features Uniquely delivered by the SX Pump Include

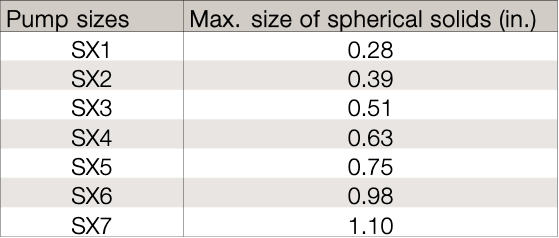

Detailed Specifications for the Alfa Laval SX Pumps

Expert Knowledge You Can Trust

Contact Anderson Dahlen for aseptic models, higher temperature, or high flow rate applications. Our engineering staff is ready to help with your system design.
