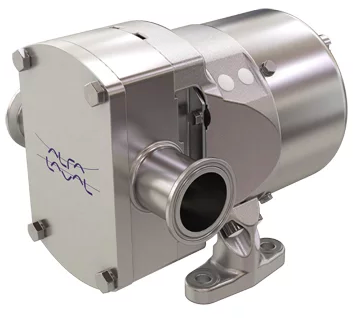

The Alfa Laval OptiLobe rotary lobe pumps are cost-effective alternatives for general sanitary applications requiring gentle product treatment and easy serviceability. Their traditional design makes them versatile, reliable and energy-efficient. These hygienic rotary lobe positive displacement pumps enhance both process flexibility and operational reliability. They are a great choice when the process requirements are not too demanding, and cost is a consideration.

Anderson Dahlen is an Authorized Distributor for Alfa Laval Pumps

Anderson Dahlen is an authorized distributor of Alfa Laval pumps, valves, and heat exchangers. We have extensive experience in pumping system design, pump installation, and pump repairs. We work in a wide range of industries, specializing in food, beverage, pharmaceutical, chemical, and industrial. When you need an Alfa Laval flow pump, contact Anderson Dahlen.

Get pricing for your stock products today!

Anderson Dahlen is an authorized distributor for a variety of independent manufacturing companies world-wide, we have the capacity to provide the necessary components for most manufacturing systems.

OptiLobe Technology Features

  • Advanced seal design and heavy-duty, long-life bearings contribute to more uptime and higher productivity
  • Truly front-loading, self-setting seals with seal faces directly in contact with the media ensures superior cleanability and lubrication, improving seal life
  • Shaft support made of a rigid one-piece bearing housing and heavy-duty L10 tapered roller bearings with a minimum life of 20,000 hours. Reduces the possibility of rotor head contact damage
  • Optional heating/cooling front covers for processes, such as sugar solutions, butter and margarines, marmalades, body butters, gels and lotions, where products harden at low temperatures.

The OptiLobe is known for easy maintenance. Factory-set shimming makes changing the rotor easy without the need to adjustment or retiming. Parts replacement, when required, is also simplified; high-precision components are interchangeable for pumps of the same size.

Wide variety of pump models for process flexibility

  • 10 different pump head displacements based on five different gearbox modules
  • Flow rates up to 77 m3/h
  • Differential pressures up to 8 bar
  • Media temperatures up to 130C
  • Port size from 25 to 100 mm in diameter

Other technical features

  • No internal contacting parts in the pump head
  • Available as a bare shaft pump only or as an integrated unit on a base plate with motor coupling, guard and shroud
  • Standard material is 316 Stainless for all the wetted parts and exterior
  • EasyFit shaft seals are front loading
  • Full interchangeability of spare parts guaranteed because Alfa Laval manufactures them in-house

Options for the OptiLobe Pump add to its versatility and include:

  • Single mechanical shaft seal with flush
  • Silicon Carbide/Carbon seal faces
  • Silicon Carbide/Silicon Carbide seal faces
  • Product wetted elastomers in FPM
  • Heating and cooling front cover
  • Horizontal or vertical porting
  • Stainless steel shroud covering coupling and motor
  • Baseplate fitted with adjustable stainless-steel ball feet

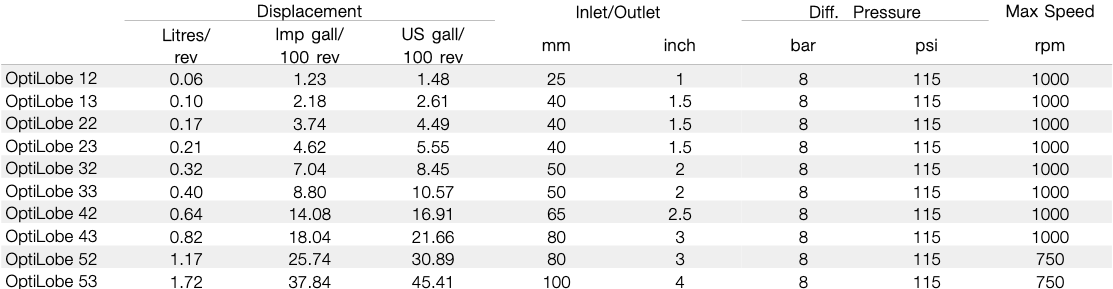

Detailed Specifications for the Alfa Laval OptiLobe Pumps

Expert Knowledge You Can Trust

Contact Anderson Dahlen for aseptic models, higher temperature, or high flow rate applications. Our engineering staff is ready to help with your system design.
