SPX FLOW 200 Series Centrifugal Pumps

The SPX FLOW 200 Series Centrifugal Pump is the most traditional sanitary pump in the SPX FLOW Waukesha Cherry-Burrell line. It offers excellent quality, great value, and excellent reliability. It’s easy to service and offers superior cleanability.

The Waukesha line offers an advanced generation of pumps. Waukesha centrifugal pumps are a generation ahead of the industry in all aspects of design, construction, and performance.

Featuring a Sealed Impeller

These rugged C-series pumps from SPX FLOW accommodate a wide range of solids and liquids under various flow requirements and deliver long and reliable service with minimum downtime.

SPX FLOW Waukesha’s Exclusive Impeller Design

This exclusive design delivers superior reliability and long life. The impeller/shaft sleeve is a single piece mounted rigidly on the motor shaft. Unlike C-flange mounted pumps, it stays aligned, performs with less vibration under the most rigorous operating conditions, and maximizes seal life.

Key Benefits and Features

Exclusive direct assembly of the impeller to the motor shaft provides maximum rigidity and helps extend seal life.
Precise clearances support a wide range of applications and operating temperatures up to 450°F (232°C).
Designed for clean-in-place (CIP) applications.
JM-type motor construction includes larger bearings and a stronger shaft for added durability.
Base mounting options are available for all sizes.
An extra-deep impeller eye improves inlet characteristics.
The design helps reduce common pump issues including vibration, short bearing life, high seal maintenance requirements, and poor tolerance to adverse operating conditions.

200 Series Pump Design Features

Motor Frame

Stainless steel.

Motor Options

NEMA JM frame standard
TEFC and washdown enclosures available
Explosion-proof and stainless steel options available
Single-phase or three-phase configurations, 50 or 60 Hz

Casing

Investment-cast 316L stainless steel with a satin exterior and sanitary finish in the product zone.

Port Connections

S-clamp · Bevel seat · Flanged · NPT threaded · I-line · DIN · Weld

Mounting

Heavy-duty flange with clamp.

Backplate

Machined from solid-bar 316L stainless steel.

Impeller

Machined from solid-bar 316L stainless steel with five compound-curved vanes and an integral motor shaft sleeve. The 2045 model uses four vanes. The impeller is directly bolted to the motor shaft with an impeller retaining nut.

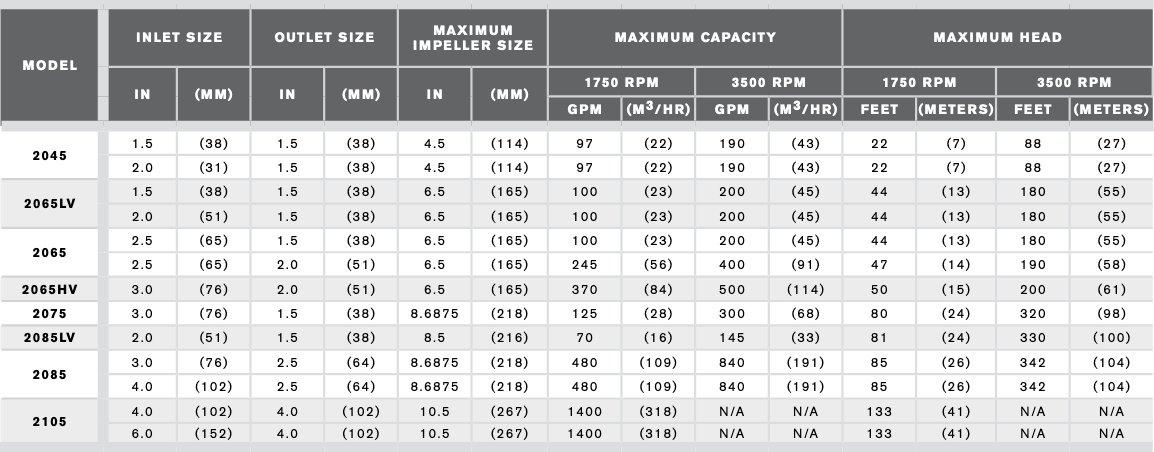

Specifications

Technical specifications for the 200 Series centrifugal pump.

Download the Instruction Manual

Your resource for maintenance, parts lists and general operation for the SPXFLOW 200 Series Centrifugal Pump.
